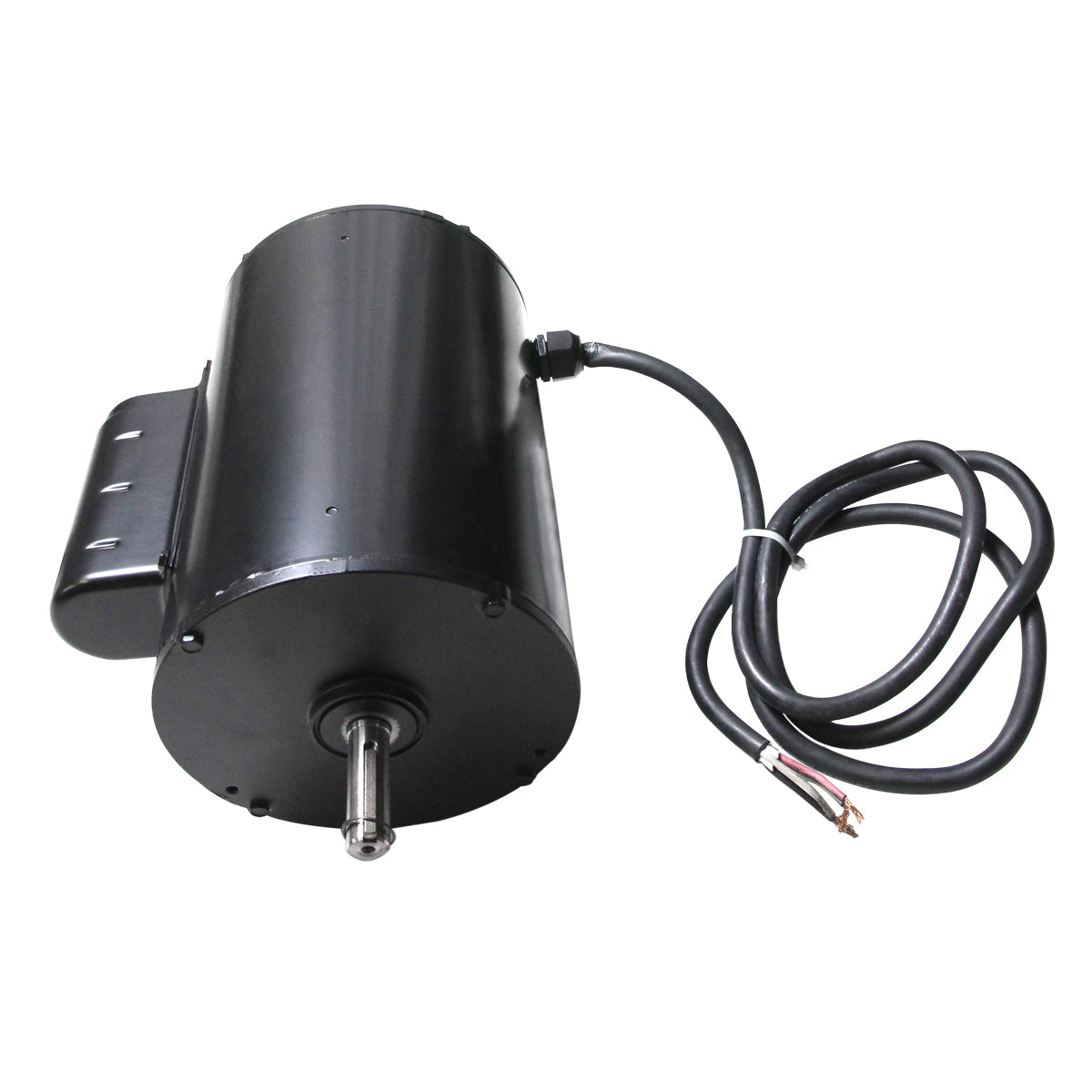

Our motors are engineered to pull less amperage than competitor fans, saving you money when operating your cooler daily. This unit includes a pre-attached bracket for easy installation.
This motor is compatible with fan model EC48B2.
Automotive
Commercial
Industrial
Livestock
Restaurant

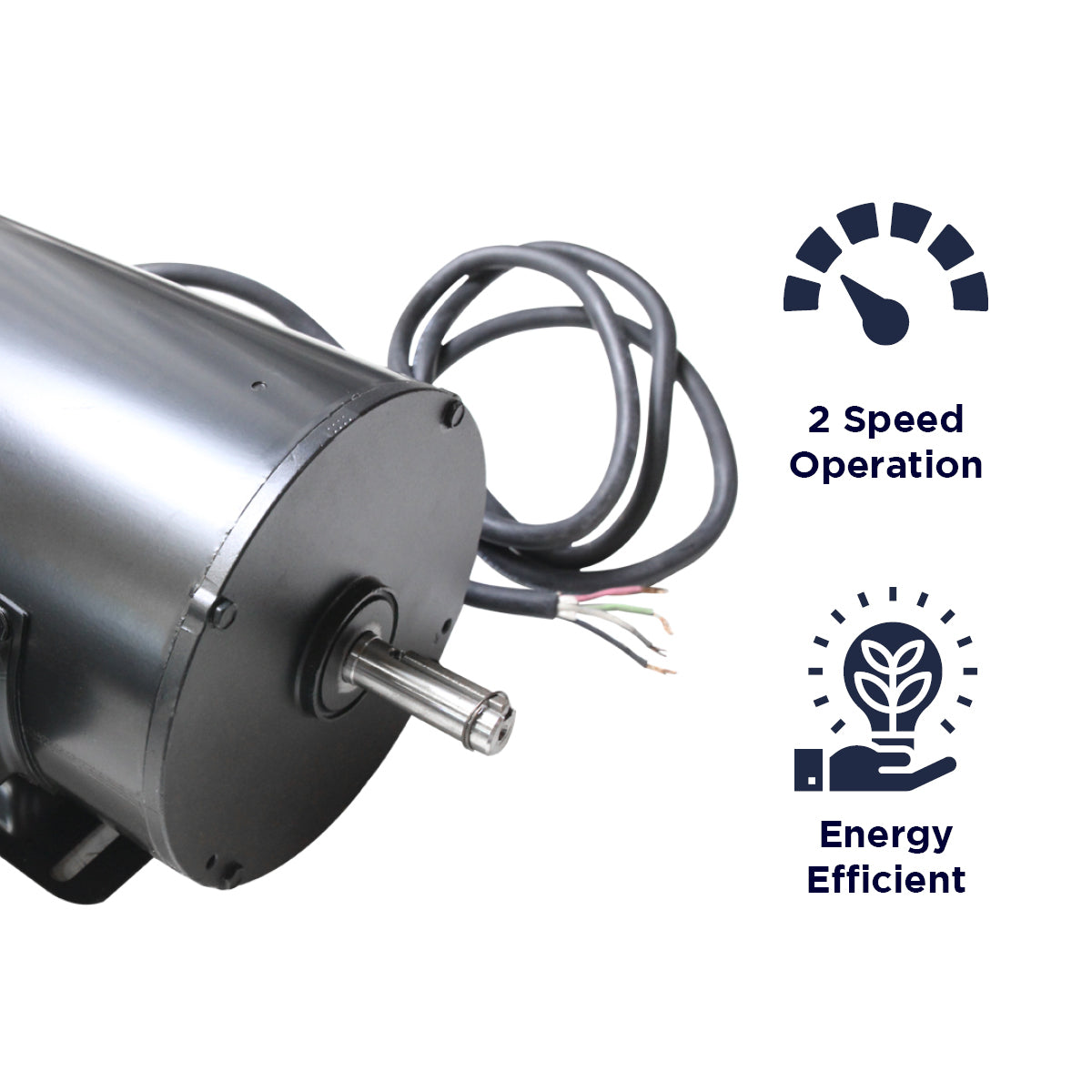

Controls: | 2 speed operation |

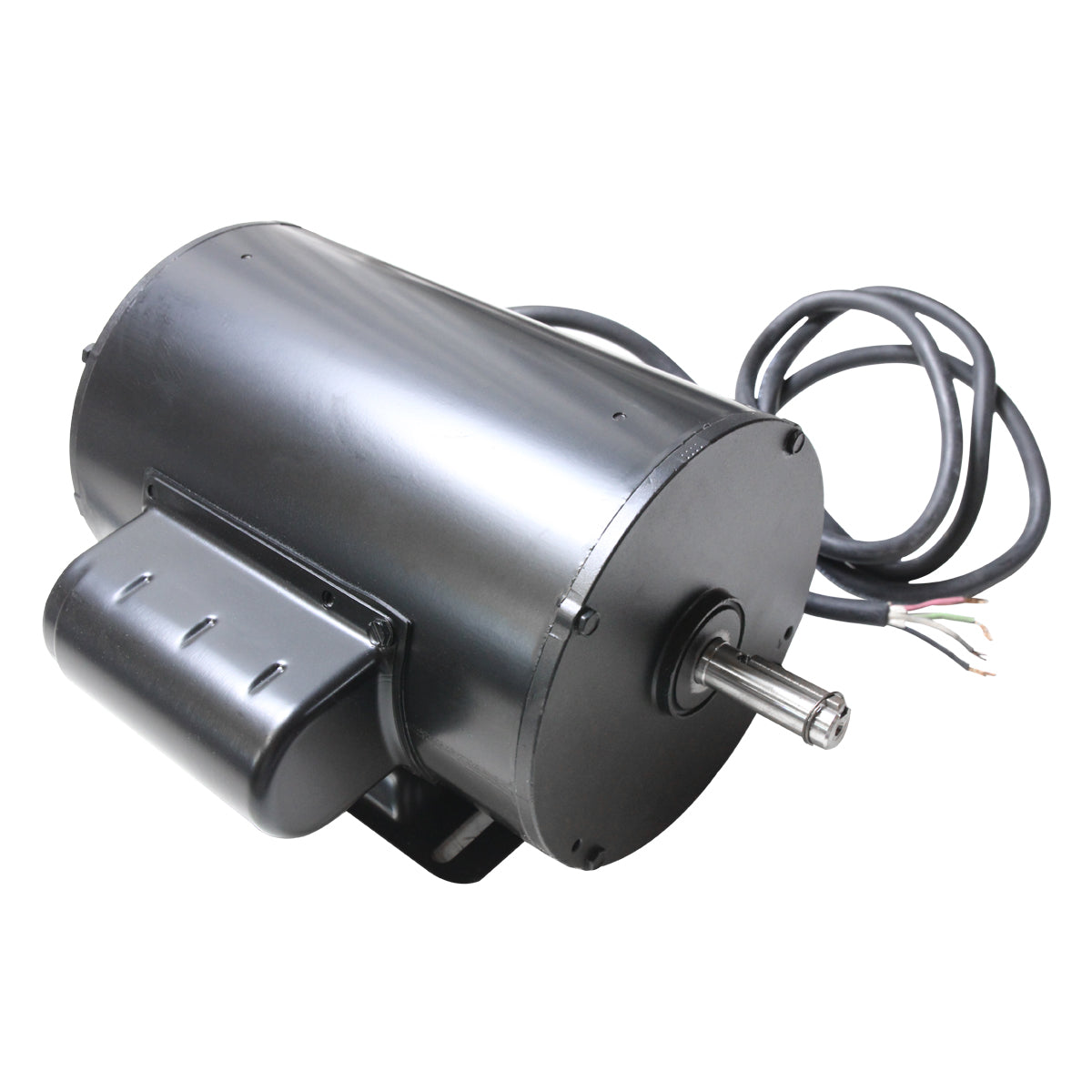

Safety: | Totally enclosed |
Primary Color | Black |
Material Details | Bracket attached for mounting. Bracket measures 6.5 in. W x 4.5 in. L |

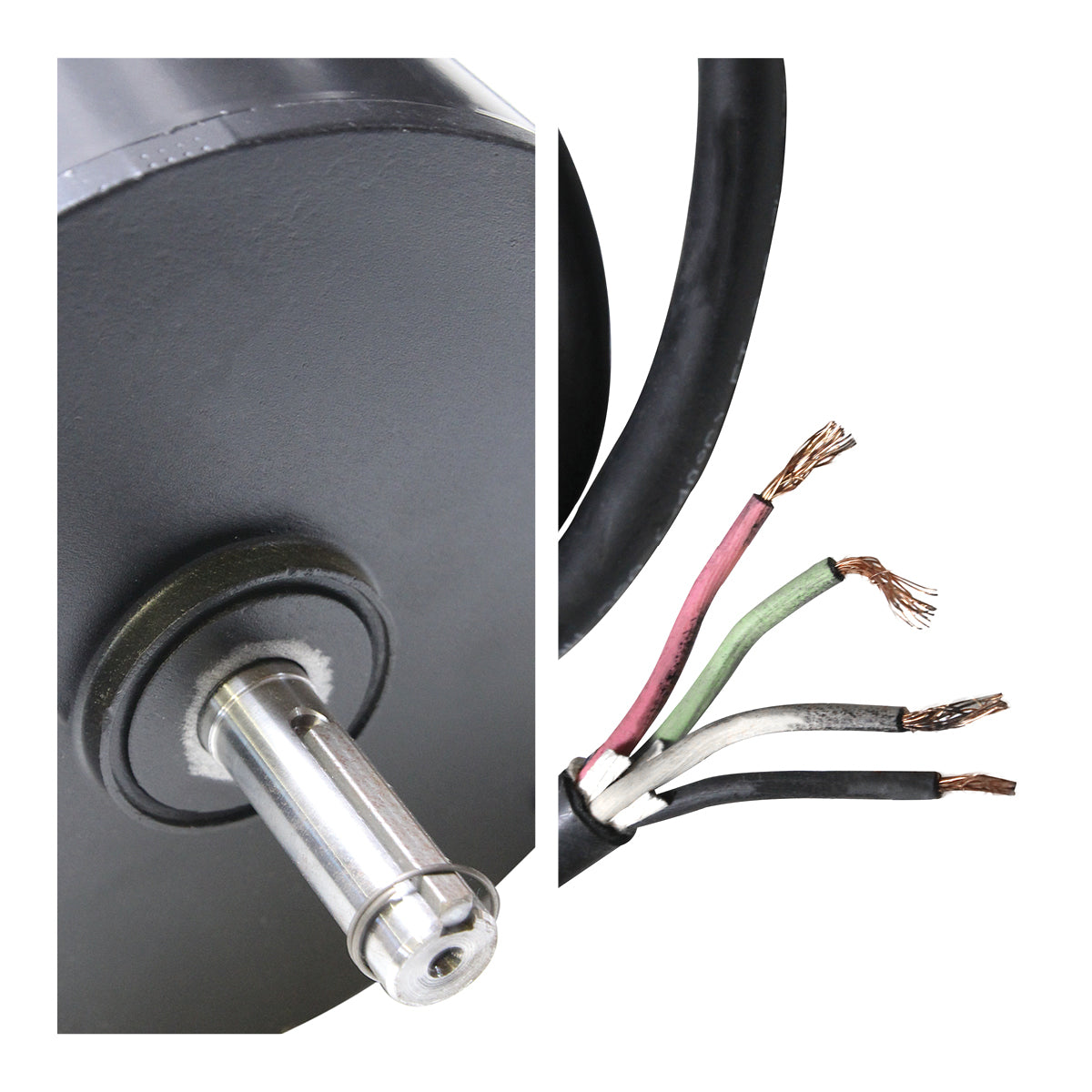

Motor Details | 2 Speed Totally Enclosed Belt Drive Motor 1-Phase, 2 in. Shaft 60 in. wire-in |
Motor Specs | 0.33 Low / 1 High HP Draws 6.4 Low / 7.6 High Amps 120 Volts, 60 Hz Performs at 1,140 Low / 1,725 High RPM |

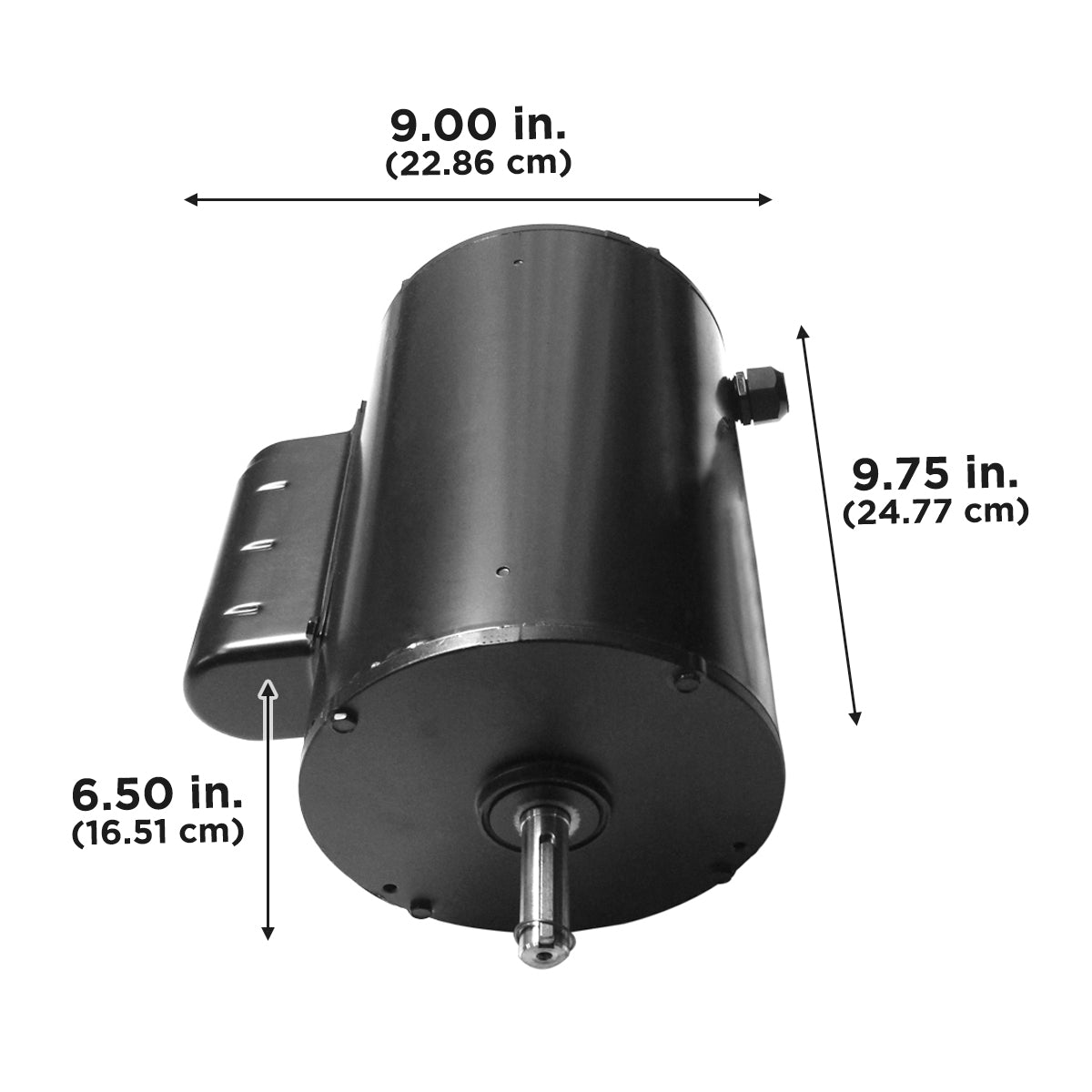

Dimensions | 6.5 in. H x 9 in. W x 9.75 in. D |
Unit Weight | 39 lbs. |
Box Dimensions | 10.75 in. H x 16.5 in. W x 11.5 in. D |
Ship Weight | 42.5 lbs. |
Alias SKU(s) | XEEC48MB2 |
Single Product UPC | 047242918144 |
Sold Under |
Maxx Air |
